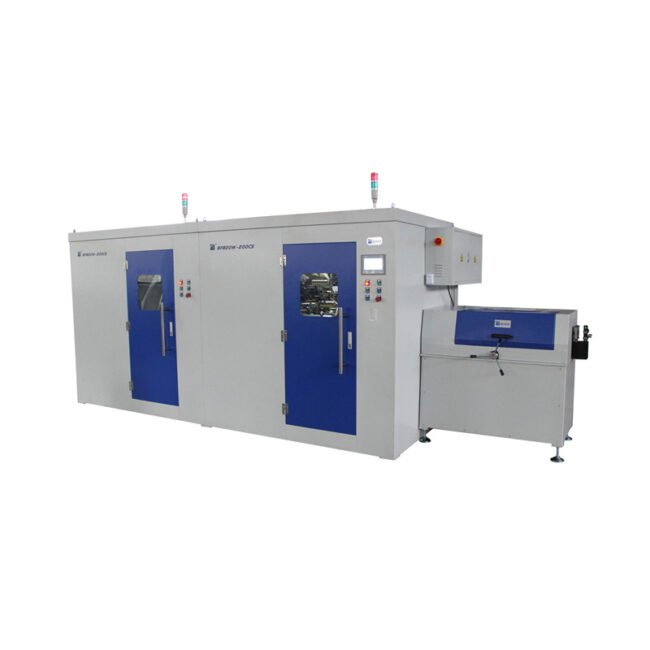

B24W-200SD
Description
Features:
1 One person can operation severa; machine .when the bobbin empty,wire broken the machine will stop.the arlam flicker
2 Operational easy ,deigital display.Setting pitch by digital control.The machine run display by the digital display
3 Automatic ,Advantage technology , adopt human machine interface ,PLC control cell coder,inverter control ,counting function,operation.
4 Good quality ,high efficiency .Often used operation buttonoutside fixed .Theefficiency is twice other braiding machine
5 Design is reliable ,good looking
6.Less noise ,produce precision spare parts ,good material and heat treat,sound proof
7 Rremember function.Braiding parameter and production total can be remembered for a while
Parameters
| No spindle | 20 Spindle | 24 Spindle | 36 Spindle | 48 Spindle | 64 Spindle | 96 Spindle | 112 Spindle |
| Material | Wire 0.16-0.5mm Stainless steel wire 0.18-0.5mm
|
||||||
| Bobbin cubage | OD D＝84mm ID d＝32mm HIGH H＝202mm Cubage 956cm3
OD D＝78mm ID d＝32mm HIGH H＝152mm Cubage 603cm3 |
||||||
| Spindle RPM | 40RPM | 35RPM | 25RPM | 17.5RPM | 12RPM | 7.8RPM | 6.75RPM |
| Braiding stands | 3-15股 | ||||||
| Braiding power | 4.0KW*2 | 4.0KW*2 | 5.5KW*2 | 7.5KW*2 | 11.0KW*2 | 18.0KW*2 | 22.0KW*2 |
| Traction power | 1.1KW | 1.5KW | |||||
| Spindle spring | 1.5-15KG | ||||||
| Braiding hose diameter | ≤22mm | ≤30mm | ≤50mm | ≤80mm | ≤150mm | ≤230mm | ≤350mm |
| Weight | 1500kg | 1575kg | 2750kg | 3200kg | 4230kg | 5600kg | 7600kg |
