Description

Features:



  • self-stop when wires ,yarn brken or empty
  • self-stop when preset winding no,guarabtee every bobbin has equal yarns capacity
  • control panel is fixed on the left of the machine .the bearingbox and poyentionmeter control the speed of the winding yarns
  • self-stop when broken or empty,spindle have self-brake device



Technical Parameters

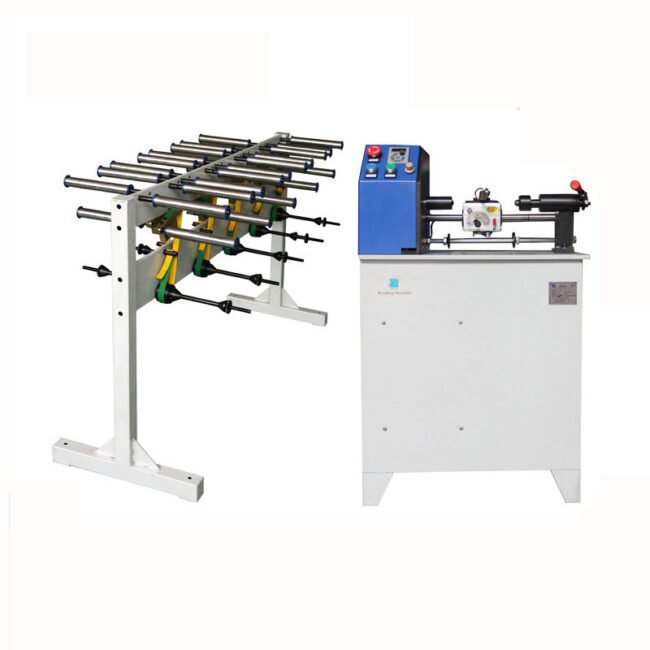

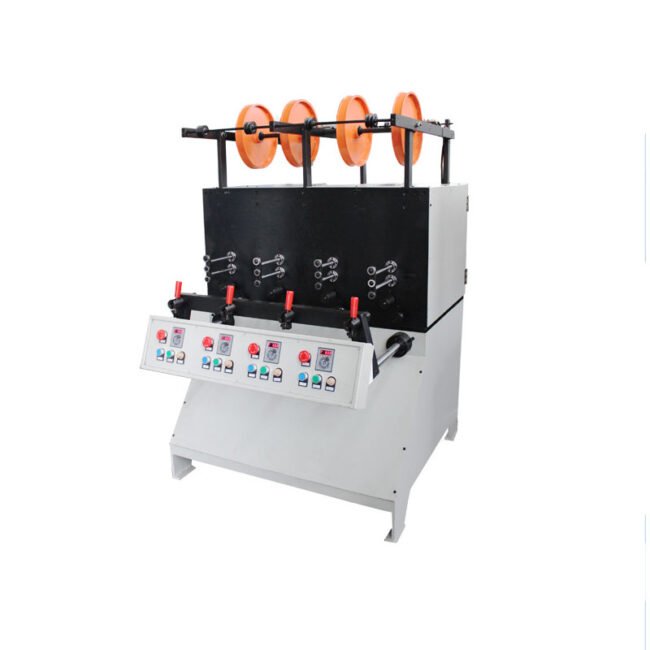

  BFBS-1A BFBS-2A BFBS-4A BFBS-4B
Axis RPM 1400RPM 1400RPM 1400RPM 1400RPM
Motor Power 0.55KW/220V  0.75KW/220V  1.5KW/380V 1.1KW/380V
Voltage 220V/50HZ 220V/50HZ 380V/220V/50HZ 380/220V/50HZ
Moving Pitch 0.05-5.5MM (Adpot  adjustable pay off machine )
Bobbin Size Bobbin diameter D≤100MM  Bobbin length L≤280MM Can design as customer request
Bobbin No 1 2 4 4
Shaft No On Pay Off ≤9 ≤18 ≤36 ≤36
Pay Off Bobbin Size ￠≤200MM H≤280MM （can design according to customer request ）
